IRENA, the International Renewable Agency, has just published a study showing how the world can meet the not-to-exceed-2°C emissions goal set by the Paris Agreement. It’s not a 100% renewables study – it still includes a little oil, gas and nuclear – but it concludes, unsurprisingly, that a massive expansion of renewable energy in all sectors will be needed between now and 2050, along with major improvements in energy efficiency, to keep the Earth within its allowable carbon budget. The study provides information on the changes that will be needed to meet this goal but provides no specifics on how they are to be met. It estimates the costs of the changes at $120 trillion (~$4 trillion/year from now to 2050, or about 5% of total world GDP) but provides no specifics on where the money is to come from. It is nevertheless confident that this massive outlay will be “dwarfed by the benefits”.
The IRENA report contains 73 pages, only 10 of which (Analysis and Insights in Key Sectors, pp. 31-40) deal with the specifics of the changes that are needed to achieve IRENA’s proposed “energy transition”. But no information is provided on how these changes are to be achieved and whether they will work if they are. Simulation models, such as those used in the Jacobson, Lappeenranta and Blakers studies, are normally used to perform this task, but IRENA seems to have by-passed this step. It has simply estimated how much renewable energy and improved energy efficiency is needed to meet the 2°C emissions goal, and the costs thereof, and it presents these estimates as achievable solutions rather than targets.
IRENA considers two scenarios. The base year for both is 2015.
- The Reference Case: Continue with current and planned policies. (I think this includes individual country Paris Agreement emissions-reduction promises, but the study doesn’t make it clear whether it does or not.)
- The REmap case: Expand renewables, improve energy efficiency etc. to the level necessary to keep temperatures below the 2°C level.
I’ll discuss these scenarios briefly using Figures selected from the IRENA text.
We begin with IRENA’s Figure 1, which illustrates how its Reference Case scenario exhausts the Earth’s cumulative carbon budget in 2037, resulting in climate catastrophe, while the REmap scenario stays just below the supposed 2°C danger threshold. (IRENA uses the 2°C threshold, which is the official Paris target, and not the widely-publicized 1.5°C threshold, which isn’t. Not even IRENA can see a way of meeting 1.5°C.)
Figure 1: IRENA Figure 1
Next comes IRENA’s Figure 3, which shows how the REmap case maintains total primary energy supply (TPES) at around current levels while the Reference case results in a 40% increase. In other words, REmap’s assumed energy efficiency improvements cut the world’s 2050 energy consumption by 40% over what it would otherwise have been:
Figure 2: IRENA Figure 3
The REmap scenario envisions a doubling of electricity generation, achieved mostly by a massive expansion of wind and solar, coupled with a reduction in fossil fuel generation (Figure 3) …..

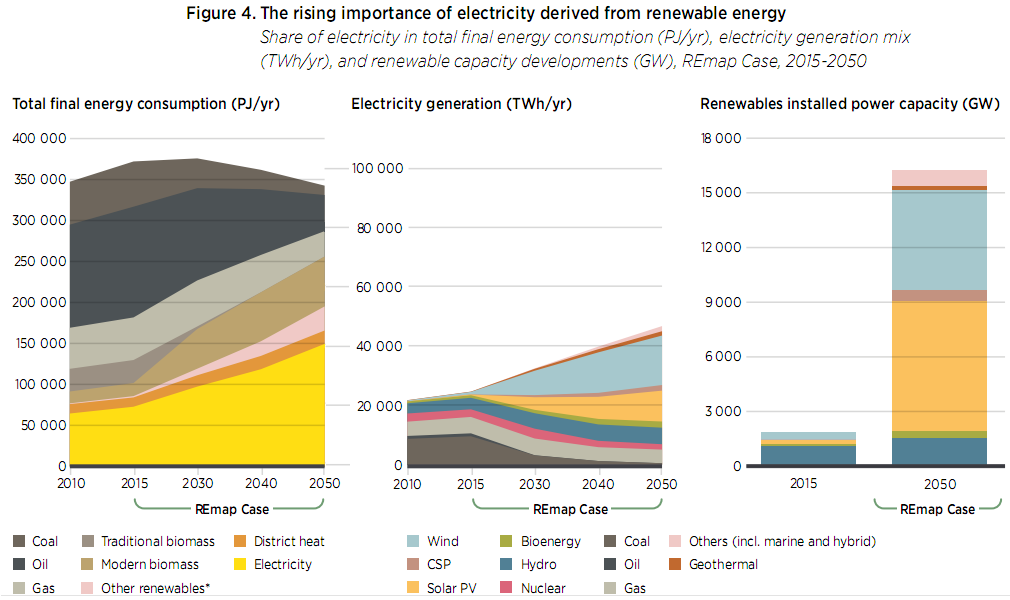

Figure 3: IRENA Figure 4: Note that the Y-scales on the first two graphics are adjusted to match (100,000 terawatt hours = 360,000 petajoules)
…. along with a 1.5 times increase in the rate of growth of energy intensity improvements, from 1.8% to 2.8% annually. When compounded this will result in a 40% overall improvement in energy efficiency by 2050 in the Remap case relative to the Reference Case (Figure 4):
Figure 4: IRENA Figure 5

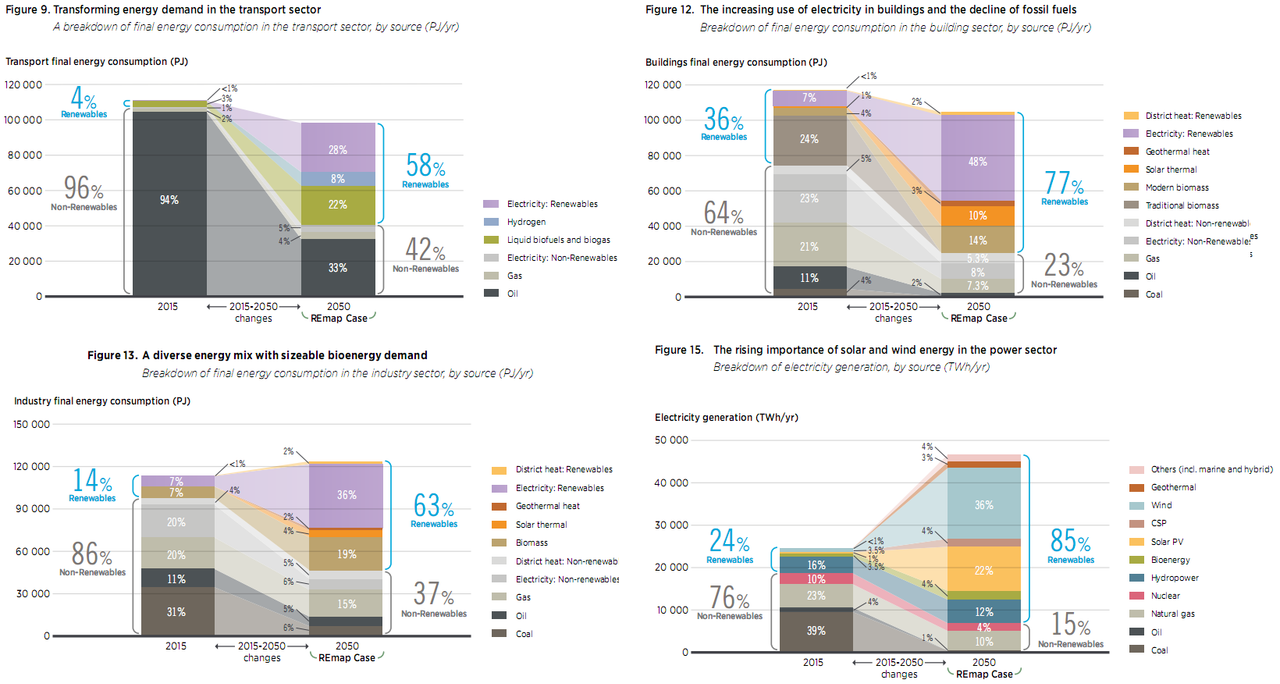

Now some specifics. Figure 5 is a collage of IRENA Figures 9, 12, 13 and 15, which show breakdowns of final energy consumption in the transport, buildings, industry and electricity sectors (“final energy” is not defined). The transport, buildings and industry sectors show large increases in the percentage of renewables and greatly increased contributions from electricity by 2050 (from 1% to 28% in transport, from 7% to 48% in buildings and from 7% to 36% in industry). The bottom right Figure shows electricity generation doubling by 2050 and the generation mix that will be needed to double it, which as might be expected is mostly wind and solar. It does, however, include 4% nuclear and 10% gas:
Figure 5: IRENA Figures 9, 12, 13 and 15

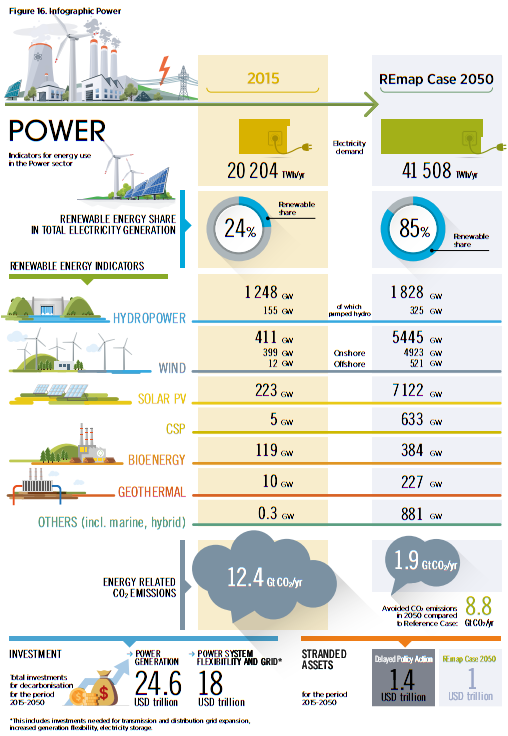

IRENA’s proposed energy transition clearly won’t work without a reliable 24/365 electricity supply, so let us now look at how this is to be achieved. IRENA Figure 16, reproduced below as Figure 6, gives details of increases in installed capacity, along with accompanying artwork, for the REmap case. The percentage of renewables in the mix increases from 24% to 85% between 2015 and 2050. The remaining generation consists of 4% nuclear and 10% gas, as shown above in Figure 5:
Figure 6: IRENA Figure 16
Going through these one by one:
Hydro capacity expands by 37.5% between 2015 and 2050 and pumped hydro capacity by a factor of 2.1 (note that capacity is again give in GW, not GWh). This is optimistic but not unreasonable.
Onshore wind capacity expands by factor of 12.3. The feasibility of this is questionable. Onshore wind is already coming under attack for its visual and potential health impacts, and the scale of the additions (an annual average of 150GW, roughly twice the UK’s total installed capacity) far exceeds anything achieved to date.
Offshore wind capacity expands by a factor of 43. Enough said.
Solar PV capacity expands by a factor of 32, an average rate of 230 GW a year. The maximum annual rate achieved so far, with the assistance of generous subsidies, is 100 GW/year.
CSP (concentrated solar power) capacity expands by a factor of 127 to 633GW, roughly twice Japan’s present installed capacity. As discussed in posts here and here CSP is a borderline failed technology.
Bioenergy capacity expands by a factor of 3.2 to 384 GW. I don’t have enough information to say whether this is feasible or not.
Geothermal capacity expands by a factor of 23 to 227 GW. As discussed in this post there aren’t enough high-temperature geothermal resources in the world to support this level of expansion.
Others (marine, hybrid) expand by a factor of 2,937 to 881 GW, not far short of total installed capacity in the European Union. If two-thirds of it is tidal we are looking at approximately 2,500 Swansea-Bay-sized tidal lagoons.
Overall IRENA foresees an expansion of renewables generation capacity from 1,861 GW (excluding pumped hydro) in 2015 to 16,195 GW in 2050, an increase of a factor of 8.7. There is essentially no chance that this will happen, but we will proceed on the assumption that it will.
According to IRENA this 16,195 GW of renewable capacity generates 85% of the 41,508 TWh, or approximately 35,000 TWh, of total 2050 generation. This gives an overall capacity factor for renewables of approximately 25%, which seems reasonable.
IRENA, however, provides no information on the capacity of the nuclear and gas plants that provide the remaining 14%, or 5,800 TWh when the 1% rounding error is ignored. Assuming an 85% capacity factor for nuclear and a 45% capacity factor for gas gives approximately 250GW of nuclear capacity and approximately 1,200 GW of gas.
Adding these numbers to IRENA’s other dispatchable and potentially dispatchable sources – hydro 1,500 GW, bioenergy (optimistically) 380 GW and geothermal 230 GW – then gives a total of 3,550 GW of potentially dispatchable capacity – say 3,500 GW. This compares with 14,081, say 14,000 GW, of non-dispatchable capacity (5,445 wind, 7,122 solar, 633 CSP and 881 “other”).
The question here is whether the generation from this capacity mix will cover demand 24/365 in all parts of the world. Simulation models, such as those used in the Jacobson, Lappeenranta and Blakers studies, are normally used to perform this task, but IRENA seems to have bypassed this step altogether. It has simply estimated how much renewable energy and improved energy efficiency is needed to meet the 2°C emissions goal, and it presents these estimates as achievable solutions rather than targets. Whether they would cover global demand 24/365 is, however, questionable. Conditions will of course vary in different places, but with 41,500 TWh of annual generation the average load will be 5.4 TW – substantially more than the 3.5 TW of dispatchable generation, some of which will not be well-adapted for load following. Managing wind and solar surpluses and deficits could therefore pose a problem.
And how does IRENA propose to manage it? It devotes only two short paragraphs, neither of which tells us much, to the issue (note: VRE = Variable Renewable Energy):
Investments will be needed for storage, transmission and distribution capacity, and for flexible generation and demand-response. Between 2015 and 2050, investments in these areas would add an estimated USD 9 trillion under the REmap Case (relative to the Reference Case). This investment would allow the system to accommodate 62% VRE while ensuring an adequate, stable and reliable electricity supply.
Support investment to enable infrastructure to integrate VRE and smart technologies (including batteries, smart charging for electric vehicles, blockchain, machine learning, use of “big data”) that have the potential to optimise extensive use of renewables to generate power.
And how much storage capacity will there be? None is listed in Figure 6, but the Transport section (IRENA Figure 10) includes 12,380 GWh of EV battery storage, enough to keep the world in electricity for about two hours assuming 100% charge/discharge efficiency. According to IRENA this capacity will come from over 1 billion EVs.
sales of electric vehicles, electric buses and electric two- and three-wheelers are growing. In 2017 around 3 million electric vehicles were on the road. Under the REmap Case, the number would increase to over 1 billion by 2050.
But 12,380 GWh spread over 1 billion EVs gives an average of only 12.38 kWh/vehicle, so many of these vehicles will be two- and three-wheelers used for transportation in developing countries. Whether these vehicles can be counted on to discharge their batteries when the grid needs it is questionable. Whether owners of four-wheel EVs in developed countries can be counted on to discharge their batteries when the grid needs it questionable too.
The likely outcome is that IRENA’s 2050 generation mix will cause the lights to go out in a number of different places, maybe quite often, and for extended periods.
On now to costs and benefits. IRENA states that the cost of expanding the electricity sector is $24.6 trillion. According to my checks this estimate is in the ball-park, so I am assuming that the $120 trillion total cost to implement IRENA’s REmap scenario in all sectors is realistic (it’s broadly in line with Jacobson’s estimate of $140 trillion to convert the world to 100% renewables). However, $120 trillion amounts to an average expenditure of ~$4 trillion/year between now and 2050, over ten times the current level of renewables investment and around 5% of current world GDP.
Where is all this money to come from? I read through pages 41 to 73 of the IRENA report, which include sections entitled “Costs, investments and reduced externalities of the energy transition”, “Socio-economic benefits of the energy transition” and “How to foster the global energy transformation: Key focus areas” and was unable to come up with a concise answer. The only statements I found that provided any guidance were:
IRENA estimates that supply-side renewable energy subsidies will be required in the early stages of the energy transition
Carbon taxes, together with the elimination of fossil fuel subsidies …. can also generate significant additional revenue flows
Although it’s always possible that I missed or didn’t understand something.
The only specific cost information I was able to find, apart from the $120 trillion total cost, was this:
This report … concludes that the additional cost of energy transition (about USD 1.7 trillion annually in 2050) are dwarfed by the benefits (on average USD 6.3 trillion in the same year). If a more broad-based welfare indicator is considered, overall benefits could be much higher.
And this:
Across the world economy, GDP increases from 2018 to 2050 in both the reference and transition scenarios. However, the energy transition stimulates economic activity additional to the growth that could be expected under a business as usual approach. The cumulative gain through increased GDP from 2018 till 2050 will amount to USD 52 trillion.
What these two statements add up to in terms of absolute cost benefits is unclear. There is also no explanation of how the numbers, which were reportedly derived from Cambridge Econometrics’ E3ME global macro-econometric model, were arrived at.
To sum up, the IRENA study proposes an expansion of renewables that will never happen because of the prohibitive costs of implementing it and which would not ensure “an adequate, stable and reliable electricity supply” even if it were implemented. Ironically, however, it probably would cut emissions by enough to save the Earth from the alleged ravages of CO2-induced climate change, but by crashing the global economy, not by expanding the share of renewables.
